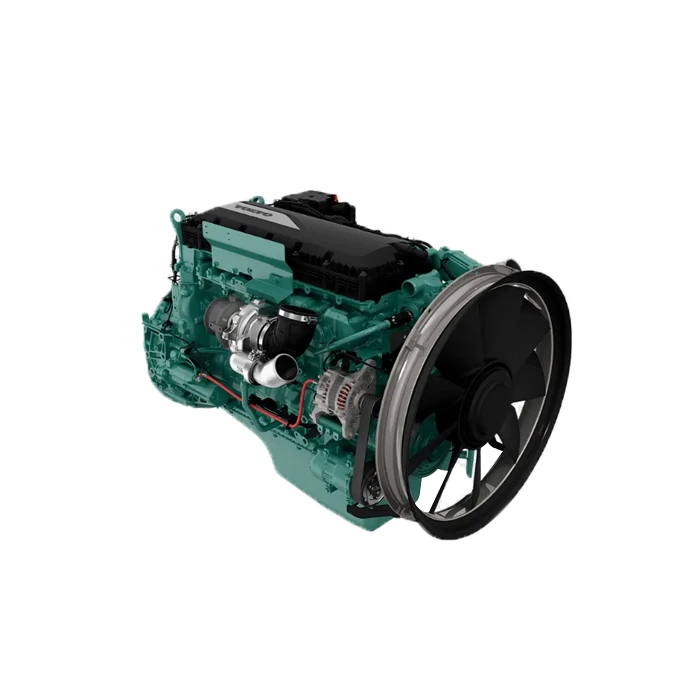

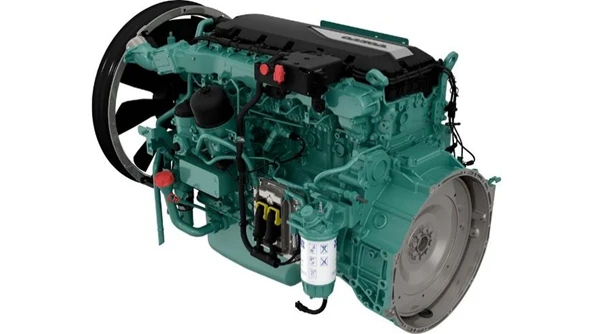

Volvo Industrial Diesel Engine

VOLVO INDUSTRIAL DIESEL ENGINE is a powerful, reliable, and economical off-road Diesel Engine range built on the Volvo Group in-line six concept.



Low cost of ownership

World class fuel efficiency combined with high uptime as well as low cost of ownership.

Compact & simple installation

As optional equipment all material needed in order to install the engine can be ordered from Volvo Penta. Installation guidelines as well as drawings and CAD models are easy to access. The result is an engine that is easy to install.

Durability & low noise

Long experience with base engine development reduces risk of downtime. Well-balanced to produce smooth operation with low noise.

Power & torque

Maximum power and torque available at low rpm. As a result, noise as well as fuel consumption is very low. Useful engine speed for the TAD850VE is due to power and torque layout very flexible.

Low exhaust emission

Efficient injection as well as robust engine design contributes to excellent combustion and low fuel consumption.

Easy service & maintenance

Easily accessible service and maintenance points contribute to the ease of service of the engine.





TECHNICAL SPECIFICATIONS	TAD850VE	TAD851VE

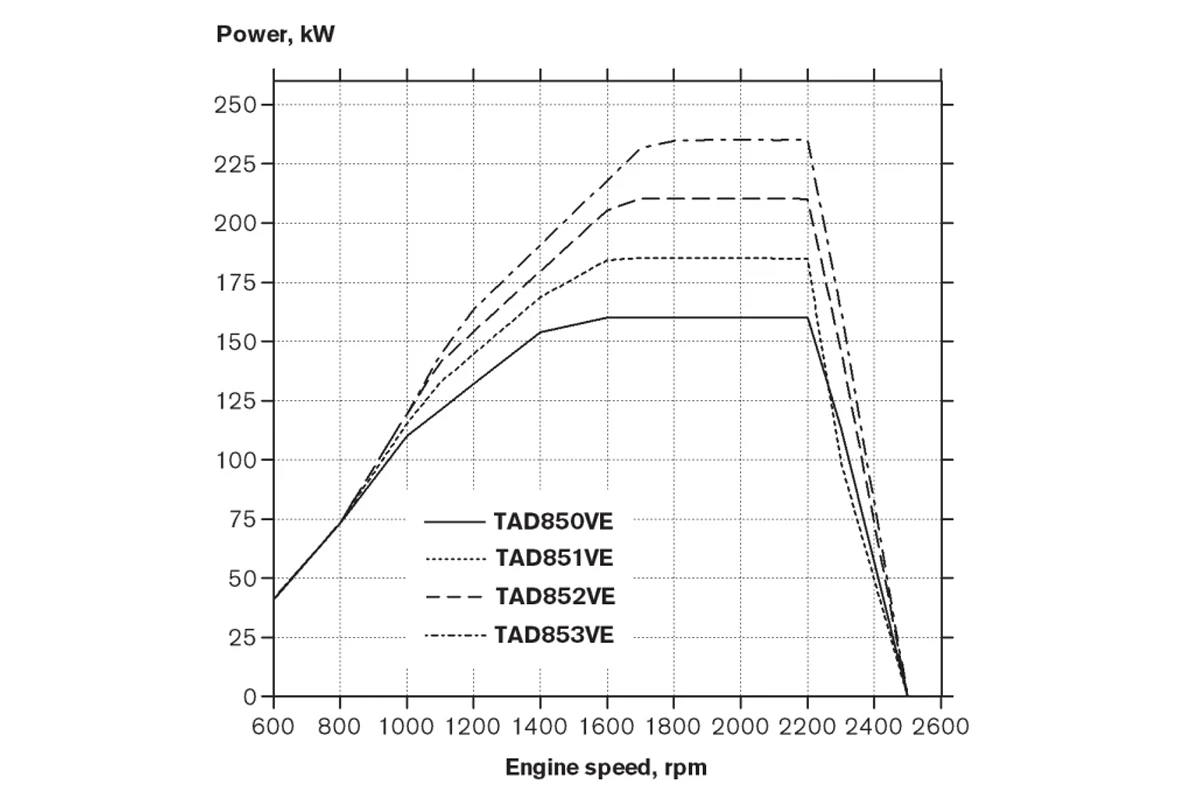

Power output, kw/hp	160/218	185/252

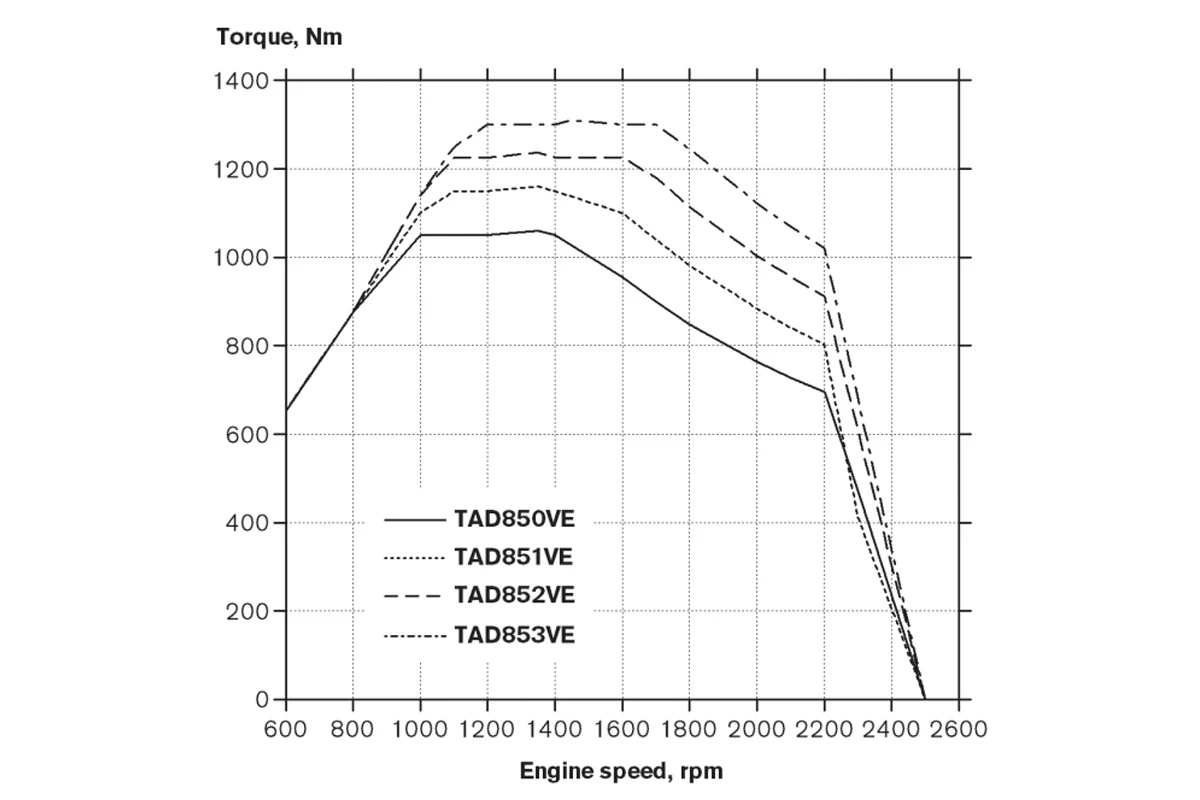

Torque(max)	1060/782	1160/856
At speed,rpm	2200	2200





Configuration and no. of cylinders ............................................in-line 6

Displacement, l (in³)...............................................................7.70 (470)

Method of operation .................................................................4-stroke

Direction of rotation (viewed towards flywheel)............anti-clockwise

Bore, mm (in.) .........................................................................110 (4.33)

Stroke, mm (in.) ...................................................................... 135 (5.31)

Compression ratio ..........................................................................17.5:1

Dry weight, engine only, kg (lb)........................................... 667 (1470)





Engine and block

• Cast iron cylinder block

• Replaceable cylinder liners

• Replaceable valve guides and valve seats

• Overhead camshaft and four valves per cylinder

Lubrication system

• Full flow cartridge insert filter

• Gear type lubricating oil pump, gear driven

Fuel system

• Common rail

• Gear driven fuel feed pump

• Fuel prefilter with water separator and water-in-fuel indicator / alarm

• Fine fuel filter of cartridge, insert type

• Manual feed pump on pre filter

Cooling system

• Belt driven coolant pump with high degree of efficiency

Turbo charger

• Fixed Geometry Turbo (FGT)

Electrical system

• Engine Management System (EMS) 2.3, an electronically controlled
