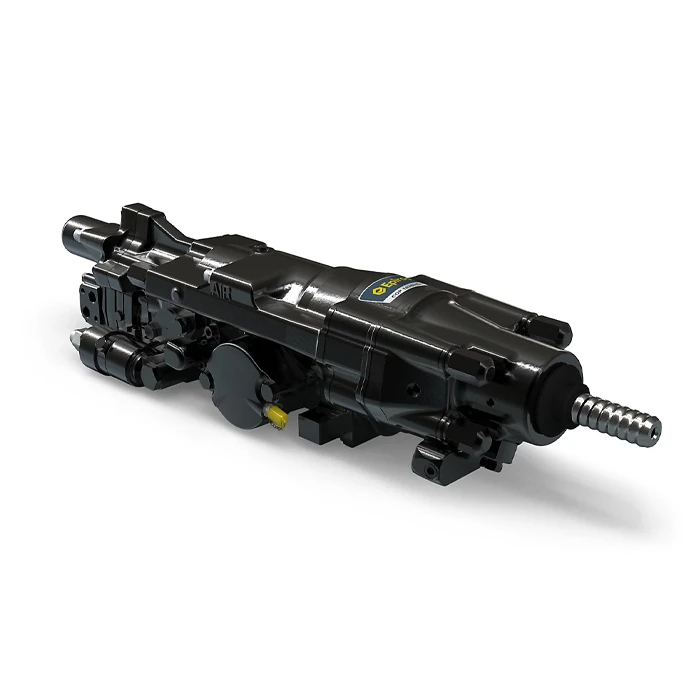

Epiroc Rock Drill Cop
High speed rock drill for high penetration rates
Hole range 38 - 64 mm
Product Overview
Model No.: COP 1838HD+
Brand: EPIROC
Product Name: EPIROC ROCK DRILL COP
Supply Ability & Additional Information
Packaging: Standard
Transportation: Ocean, Land
Place of Origin: China Port: FOB QINGDAO
Payment Type: L/C,T/T
EPIROC ROCK DRILL COP is developed to provide extended service life, with no sacrifice to its proven drilling performance.
EPIROC ROCK DRILL COP is a heavy hydraulic percussive rock drill with independent rotation and separate flushing. High drilling capacity and reliability is achieved through functional modules.
Product parameters
TECHNICAL SPECIFICATIONS
|
Weight |
175kg(386lb) |
|
Length without shank adapter |
1080 mm |
|
Width including connectors |
251mm |
|
Height |
223mm |
|
Height over drill center |
88mm |
|
Impact power (max) |
18 KW |
|
Input power to rock drill(max) |
31kw |
|
Hydraulic pressure (max) |
230bar |
|
Flow rate |
75-92l/min |
|
Impact frequency |
60Hz |
|
ROTATION MOTOR |
|
|
Motor type 1 |
05(100CC) |
|
Torque (max.) |
640 Nm |
|
Working pressure(max) |
210 bar |
|
Oil consumption |
79 l/min |
|
ROTATION MOTOR |
|
|
Motor type 2 |
06(125CC) |
|
Torque (max.) |
820 Nm |
|
Working pressure(max) |
210 bar |
|
Oil consumption |
75 l/min |
|
ROTATION MOTOR |
|
|
Motor type 3 |
07(160CC) |
|
Torque (max.) |
1000 Nm |
|
Working pressure(max) |
210 bar |
|
Oil consumption |
75 l/min |
|
FLUSHING PRESSURE |
|
|
Max. water pressure |
25 bar |
|
Lubricating consumption at 2 bar |
5l/s |
|
Flushing water consumption |
55-120l/min |
