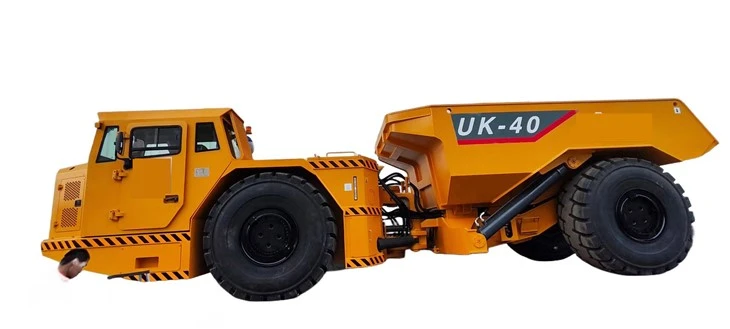

Underground Mining Truck
Underground mining trucks, also known as underground dump trucks or underground haulers, are heavy-duty vehicles engineered to transport ore, minerals, and waste rock from mining sites to the surface or designated processing areas. Unlike trucks for surface mining, these underground trucks are designed to withstand the unique challenges of underground mining, such as confined spaces, uneven terrain, and limited ventilation.
Parameter
|
Stadard box volume(can be customized) |
7.5 m³ |
|
Tramming capacity |
15,000 kg |
|
Max.traction force |
170 kN |
|
Length |
8,380mm |
|
Width (outside the wheel) |
2,030 mm |
|
Height |
2,350 mm |
|
Box height |
2,000 mm |
|
Dumping box height |
4,395 mm |
|
Min.turning radius (inner) |
4,250 mm |
|
Min.turning radius (outer) |
7,070 mm |
|
Weight |
15000 kg |
Benefits of Underground Mining Trucks
Reliability: Equipped with the latest technology, robust construction, and durable powertrains, these trucks are built to withstand the harsh conditions of underground mining operations while delivering consistent performance over time. High reliability ensures maximum uptime, increased productivity, and a lower total cost of ownership.
Efficiency: Underground mining trucks streamline material transport in mines by improving fuel efficiency, optimizing payload capacity, and incorporating advanced control systems. Their superior maneuverability allows operators to navigate tunnels and obstacles more easily, reducing transport time and improving overall operational efficiency.
Safety: These trucks are designed with advanced safety features to protect operators and enhance safety in challenging mining environments. From ergonomic operator cabins to integrated monitoring systems and collision avoidance technology, every aspect is engineered to prioritize operator well-being and minimize operational risks.
Safety
Standard Operator Present System, which protects the machine and operator from uncontrolled machine movements, with hydraulic system neutralization and door sensor.
Safer service with steering frame lock, body retaining pins, exhaust heat shielding and firewall fitted, plus hitch hydraulic hoses fitted with burst protection sleeves.
Safer access and egress with anti-skid upper deck surfaces, new and improved upper deck handrails, 3-point cabin and machine access, additional access via the front grill and alternate exit via windows.
Integrated Cat braking system that delivers reliable performance and control, plus service brake system actuated by hydraulic pressure and parking brake function that is spring applied and hydraulic released to ensure braking in the event of loss of hydraulic pressure.
Power & Efficiency
Powered by a engine with an EU Stage V emission rating to comply with emissions regulations while providing unmatched power.
1. Increase of engine torque rise from 18% to 28%, coupled with a powertrain ratio update to spread the torque rise, for superior grade holding capability.
2. Cat Data Link, which decreases fuel consumption, regulates engine speed and prevents shifting above a pre-programmed gear while the body isn’t fully lowered.
3. Torque converter lock-up clutch that combines the high rimpull and smooth shifting of a torque converter drive with the efficiency and performance of direct drive.
4. Modular HVAC system with dual power options —operates when engine is running to provide maximum efficiency in hot applications and is powered by the electric system when the engine is turned off, for less engine idling and lower operating costs.
Serviceability
1.Ability to tilt the cab for improved access to the cab side of the engine, improved access to brake accumulator and engine mounting hardware, plus access to alternator and starter motor without removing belly plates.
2.Ground-level access to all tanks, filters, lubrication points and compartment drains; remote mounted fuel filters for easier serviceability; and fluid-level sight gauges.
3.Radial seal air filters that are easy to change, reducing time required for air filter maintenance; plus upsized radiator surround has to improve access to pre-cleaner and filters.
4.Electrical connectors that are sealed to lock out dust and moisture, harnesses that are covered for protection, and wires that are colour and number-coded for easy diagnosis and repair.
