30 TON UNDERGROUND DUMP TRUCK
Products OVERVIEW
UK-30 is a narrow 30 tons truck that fits in a 3.5 x 3.5 meter heading.
Available with a standard forward facing, open operator's compartment or an optional forward facing, fully enclosed and air conditioned cabin, it offers operator comfort without compromising visibility.
product Main Features
1.1. ISO ROPS/FOPS operator's compartment
1.2. Hydraulic-release (SAHR) brakes
1.3. Articulation safety lock
1.4. Dump box safety support
1.5. Rear-view camera
1.6. Reverse alarm.
1.7. Self-lock.
1.8. Automatic alarm system for oil temperature, oil pressure and electrical system.
1.9. Engine auto fire suppression system
spary read laser welding technology
2.1 UK-30 is impressively fast to haul the materials up the ramp in no time. s
2.2. Auto lubrication system.
Industry standard
GB⁄T 35195-2017
Technical standards for construction machinery and equipment
JB/T8436
Standard for tire-type ore trucks for underground mines
GB21500
Safety requirements for trackless tire-type mine trucks for underground mines
Application
When working at -1500 ~ +3000 meter, When temperature is no higher than 25℃, there is no engine power loss
Environment Temperature
-35℃~+50℃
Mining Altitude
-2000m ~ +5000m

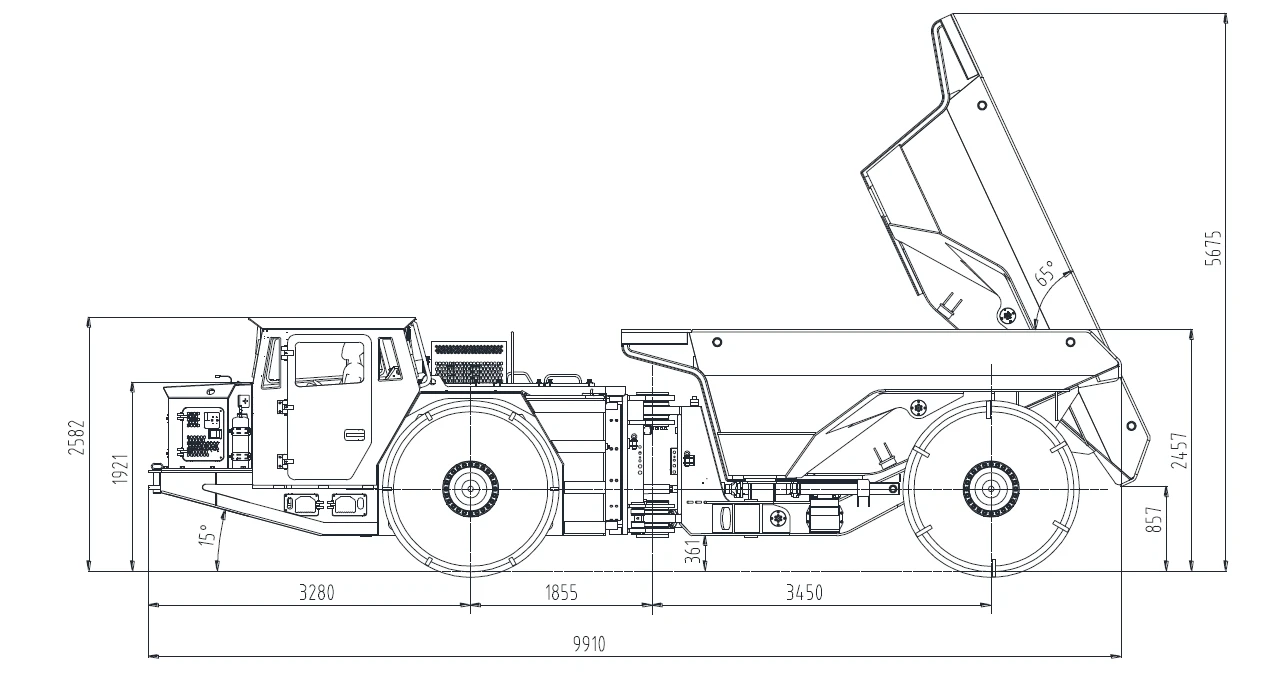

Products Dimensions
Products Description
| Capacities | |
| Tramming capacity | 30000 kg |
| Dump box volume | 15 m³ |
| Max. Traction | 320KN |
| Gradability | 25%(14°) |
| Main Dimensions | |
| Overall Size | 9910X2800X2582mm |
| Box Lift Height | 5675 mm |
| Wheelbase | 5305 mm |
| Min. ground clearance | 361 mm |

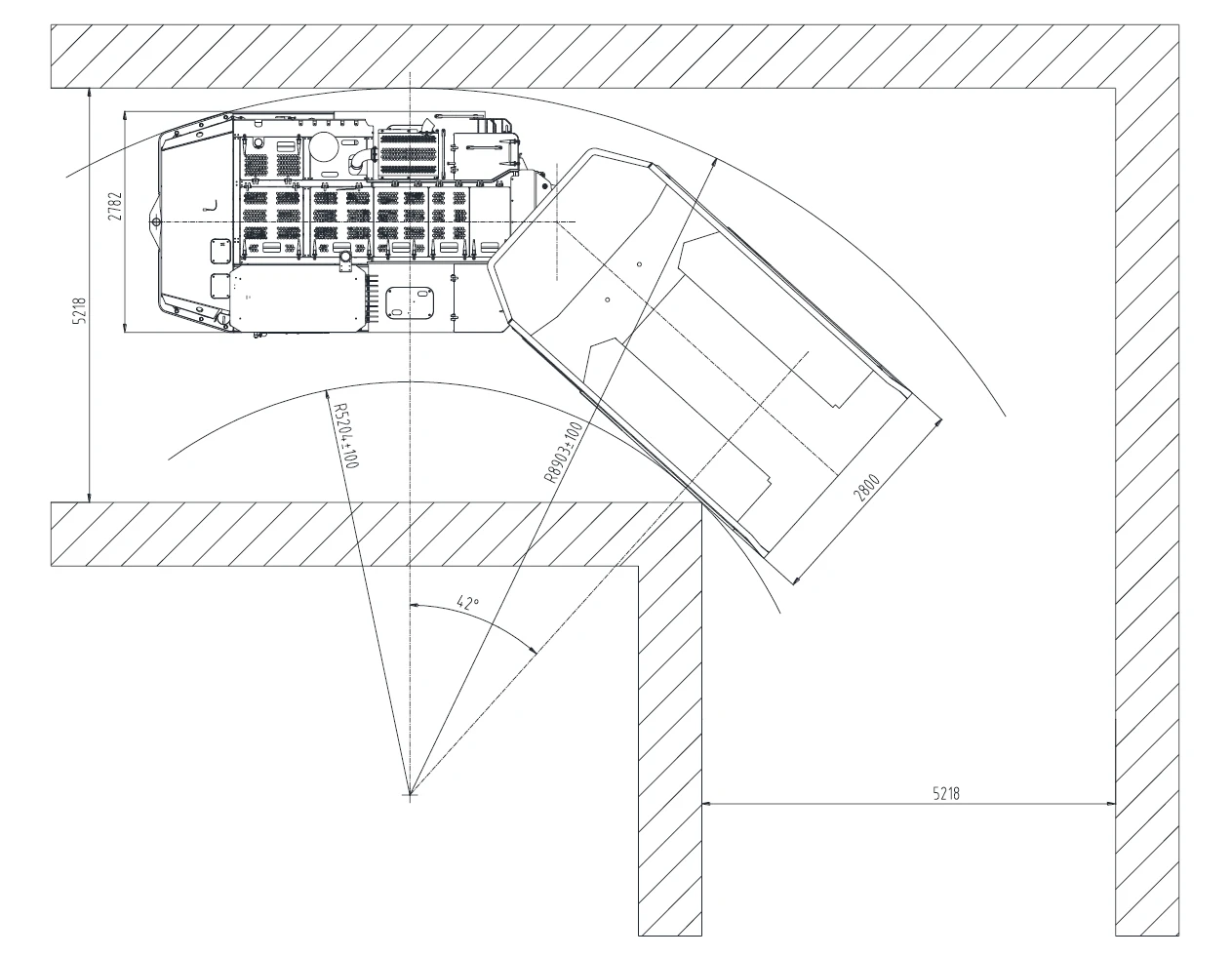

| Turning radius | 5204 / 8903 mm |
| Turning angle | 42° |
| Dump angle | 65° |
| Oscillation angle | ±8° |
| Speed | |
| 1st gear | 0~5.1 km/h |
| 2nd gear | 0~9.2 km/h |
| 3rd gear | 0~15.2 km/h |
| 4th gear | 0~26.3 km/h |
| Dump Box Motion Time | |
| Discharging time | ≤14s |
| Box lowering time | ≤14s |
| Weight, empty | |
| Operation Weight | 31000 kg |
| Front axle | 20100 kg |
| Rear axle | 10900 kg |
| Weight, Loaded | |
| Fully Loaded Weight | 61000 kg |
| Front axle | 27150 kg |
| Rear axle | 33850 kg |
| Engine | |
| Diesel engine | VOLVO TAD1352VE |
| Output | 315kw @ 1900rpm |
| Max. Torque | 2175 Nm @ 1200rpm |
| Displacement | 12.5L |
| Emission | Emission norms |
| Number of cylinders | in-line 6 |
| Method of operation | 4-stroke, direct injection with intercooler |
| Fuel tank | 430L |
| Converter | |
| Brand | DANA |
| Model | CL8672 |
| Transmission | |
| Brand | DANA |
| Model | 6422 |
| Axle | |
| Model | Kessler D102 |
