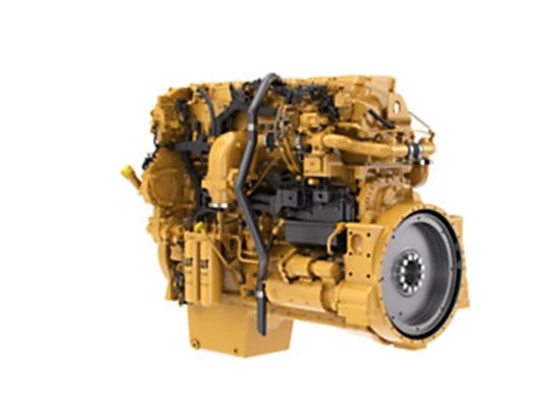

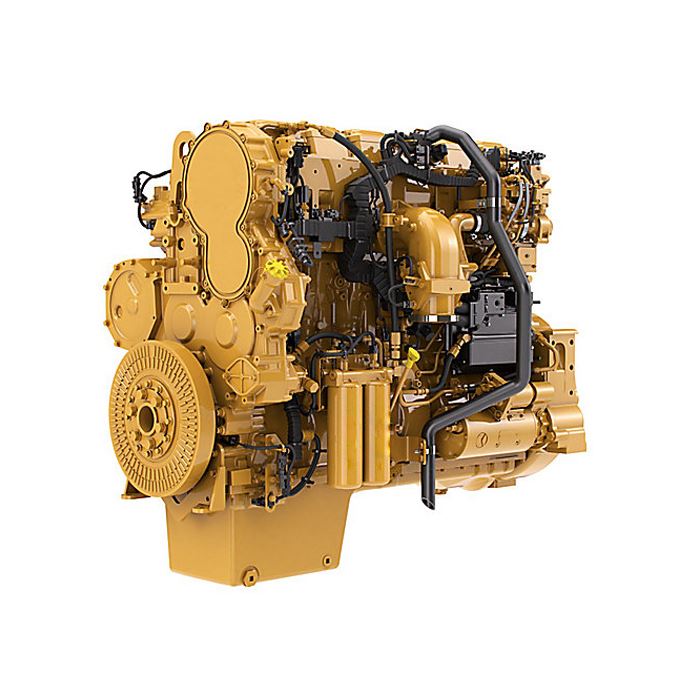

Industrial Diesel Engine for Cat
KEY SPECS
Maximum Power:800 HP
Maximum Torque:2736 lb-ft @ 1300 rpm
Emissions:EU Stage V
Product Overview
Model No.: C18
Brand: CAT
Product Name: INDUSTRIAL DIESEL ENGINE
Supply Ability & Additional Information
Packaging: Standard
Transportation: Ocean, Land
Place of Origin: China Port: FOB QINGDAO
Payment Type: L/C,T/T
INDUSTRIAL DIESEL ENGINE FOR CAT is a powerful, reliable, and economical off-road Diesel Engine range built on the CAT Group.
With a DEF capacity of 93.7 liters and 5,000-hour service intervals, INDUSTRIAL DIESEL ENGINE FOR CAT also features transparent regeneration technology giving owners the power to stay more productive-when its needed the most.
Product parameters
|
Power Rating |
|
|
Power(max.) |
800HP |
|
Torque(max.) |
2736lb-ft@1300rpm |
|
Rated speed |
1800-2000rpm |
|
Power(min.) |
575HP |
|
Emissions |
|
|
Emissions |
EU Stage V |
|
GENERAL |
|
|
Engine Configuration |
In-Line 6 |
|
Bore |
5.7 in |
|
Stroke |
7.2 in |
|
Displacement |
1104.5in3 |
|
Compression Ratio |
16.0:1 |
|
Aspiration |
Turbocharged-Aftercooled (TA) orSeries Turbocharged Aftercooled(TTA) |
|
Combustion System |
Direct Injection |
|
Rotation from Flywheel End |
Counterclockwise |
|
After treatment |
DOC or DOC+DPF+SCR |
|
ENGINE DIMENSIONS - APPROXIMATE |
|
|
Length |
56.6in |
|
Width |
44.6in |
|
Heigh |
t53.4 in |
|
Weight - Net Dry |
3785Ib |
FEATURE
AIR INLET SYSTEM
Turbocharged
Air-to-Air Aftercooled
Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage V)
CONTROL SYSTEM
Electronic control system
Over-foam wiring harness
Automatic altitude compensation
Power compensated for fuel temperatureRemote fan control
Configurable software featuresEngine monitoring system SAEJ1939 broadcast and controlIntegrated Electronic Control Unit (ECU)
COOLING SYSTEM
Thermostats and housing, vertical outletCentrifugal water pump
Guidance on cooling system design available through your dealer to ensure equipment reliability
FLYWHEELS AND FLYWHEEL HOUSING
Choice of SAE No.O or SAE No.1 flywheel housingAvailable SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine powercan also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage V).
FUEL SYSTEM
MEUI injection
Primary fuel filter
Secondary fuel filters
Fuel transfer pump
Electronic fuel priming
Ideal Applications
Industrial, agricultural and construction applications such as: Asphalt paving equipment • Compressors • Bore rigs • Drill rigs • Chippers • Grinders • Hydraulic power units • Pumps • Trenchers • Irrigation Equipment
