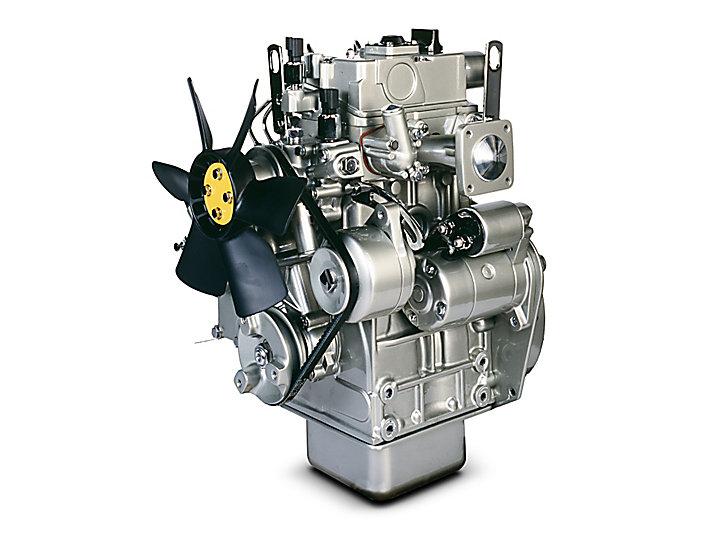

Perkins Industrial Diesel Engine 402D-05
Maximum Torque:29.7 Nm @ 2600 rpm
PERKINS INDUSTRIAL DIESEL ENGINE 402D-05
Products Overview
The Perkins 400 Series Industrial Diesel Engine comprises a diverse array of engines, ranging from 0.5 to 2.2 litres. Among these, the 2-cylinder 402D-05 model stands out as Perkins' smallest engine, offering a harmonious blend of performance, minimal operating expenses, and an ultra-compact design. From a packaging perspective, the 402D-05 is the epitome of an engine tailored for small-scale industrial applications.
As Perkins' smallest engine, Perkins Industrial Diesel Engine 402D-05 boasts remarkable performance, low operational costs, and an ultra-compact yet efficient package. This combination of features renders it ideal for a diverse range of small, off-highway applications.
Products Key Features
Lower Cost
Perkins 400 Series engines offer highly competitive performance and remarkable fuel economy.
Compact Design
The compact design of the Perkins 400 Series engines renders them suitable for a diverse array of applications.
Performance
The Perkins 400 Series boasts a seamless power range of 8.2-50 kW (11-67 hp), encompassing 2, 3, and 4 cylinder models, all designed with a unified family aesthetic.
Standard Configuration
Cooling System
Coolant temperature switch;
Cooling fan options available
Electronics
Alternator 12V,14A
Starter motor 12V,
0.8-1.2 kW
Flywheel & Housing
Flywheel housing SAE5
Flywheel SAE 6 1/2
Fuel System
Fuel injection pump
fuel filter
Products Technical Parameter
| Max. Power | 10.2 kW |
| Max. Torque | 29.7 Nm @ 2600 rpm |
| Rated Speed | 2800-3600 rpm |
| Min Power | 8.2 kW |
| Number of Cylinders | 2 inline |
| Cycle | 4 stroke |
| Cooling System | Liquid |
| Rotation from Flywheel End | Anti-clockwise |
| Emissions | U.S. EPA Tier 4 Interim equivalent |
| Length | 406mm |
| Width | 371mm |
| Height | 523mm |
| Dry Weight | 57KG |
