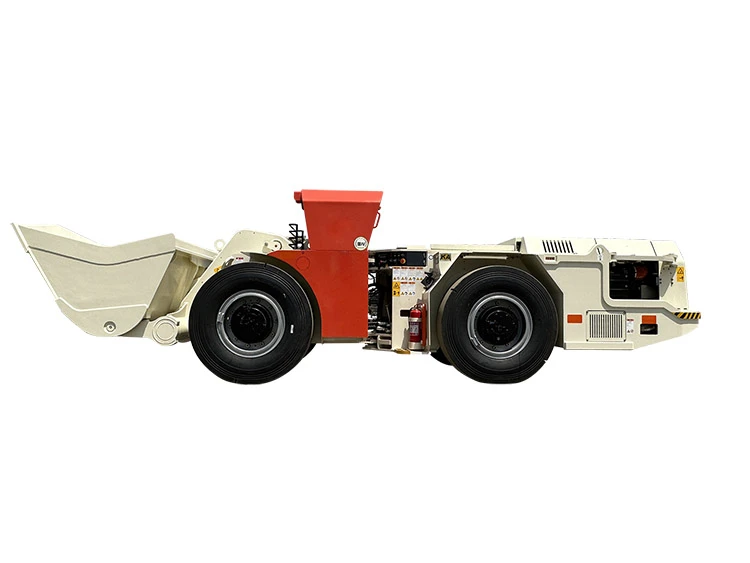

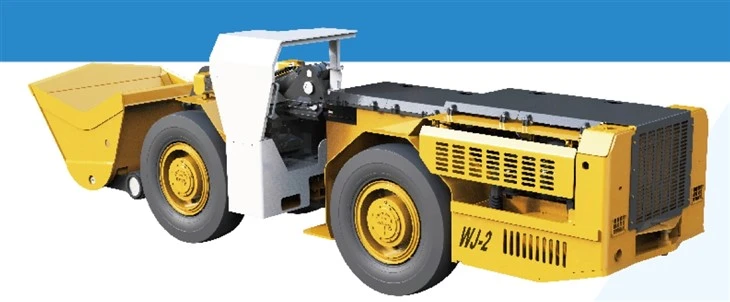

2.5m³ Diesel Underground Mining Loader
Bucket capacity: 2.5m³
Designed for loading, hauling and dumping operation of underground rock.
PRODUCTS OVERVIEW
2.5m³ Diesel Underground Mining Loader is developed specially for underground use for the most diverse application, including development work, mining and tunnelling construction. It can adapt to the harsh underground working environment and is suitable for tunnels with a width of more than 2.5m.
It is a powerful, safe, environment-friendly, high-performance, high-reliability, and high-efficiency underground transportation machine relying on Sandvik technology.
PRODUCTS PARAMETER
| Product Name | 2.5m³ Diesel Underground Mining Loader |
| Standard bucket(can be customized) | 2.5m³ |
| Engine |
Deutz 110KW |
|
Maximum output torque |
569 N.m |
|
Rated speed |
2300 r/min |
|
Rated Loader |
4500kg |
|
Maximum lifting force |
60KN |
|
Maximum shovel force |
9000kg |
| Axle(front/rear) | LG |
|
Torque converter |
DANA C273 |
|
Transmission |
DANA R32000 |
| Tramming capacity | 5000kg |
| Axle(front) | 6000kg |
| Axle(rear) | 8000kg |
| Weight | 13800kg |
PRODUCTS HIGH LIGHTS

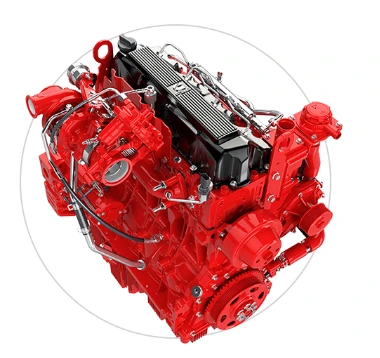

Engine Emissions
50% reduction in particulate emissions;
100% increase in exhaust and coal smoke ratio

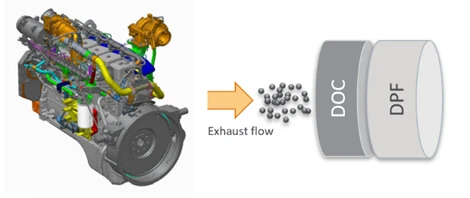

Exhaust Treatment
DOC+ DPF
Advanced Filtration System
Three-Stage Fuel Filter and Water Detection Alarm Function

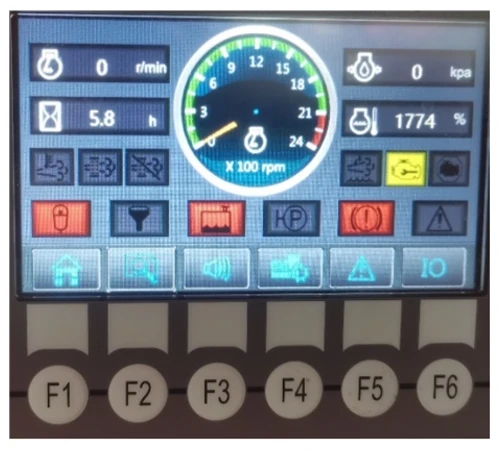

Basic Alarm Function
Electronic Air Filter Alarm"
Engine Overheat Alarm"
DPF (Diesel Particulate Filter) Alarm
Integrated Handle

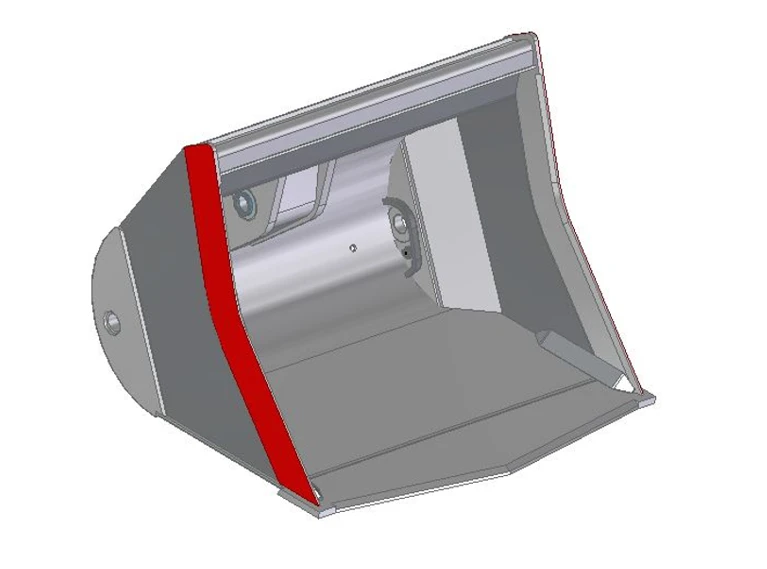

Reinforced Bucket

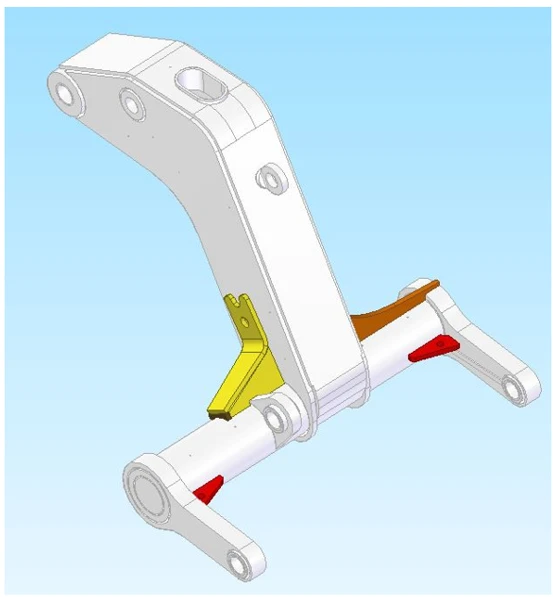

Reinforced Boom Design

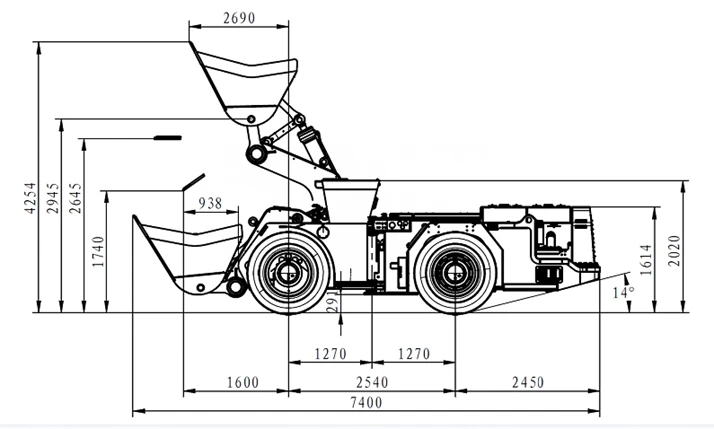

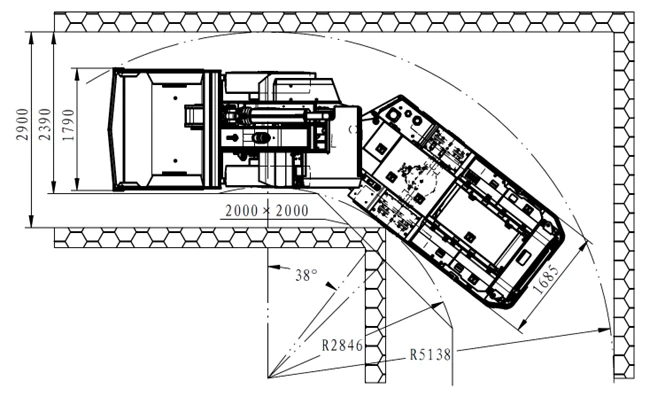

DIMENSIONS
PRODUCTS FEATURES
high Safety
Safety canopy designed according to FOPS & ROPS safety standards;
POSI-STOP brake system ensures brake safety.
High reliability
Reliable key components are used;
Exceptional key performance management and lean product system.
Easy maintenance
Daily maintenance can be done on the ground level.
Central lubrication and pressure testing system.
Economic and efficient
The power system based on Sandvik technology is better matched, with greater breakout force, more fuel efficiency, more efficiency, and low cost per ton.
APPLICATION
Mining and Underground Operations
Underground loaders are widely used in mines and underground operations for excavating, transporting, and hauling ore, coal, and other valuable minerals.
Tunneling and Underground Construction:
Underground loaders are employed in tunneling projects and underground construction activities.
Safety in No-Coal Mines:
In hazardous environments like No-coal mines, underground loaders are utilized for coal excavation while ensuring workplace safety
