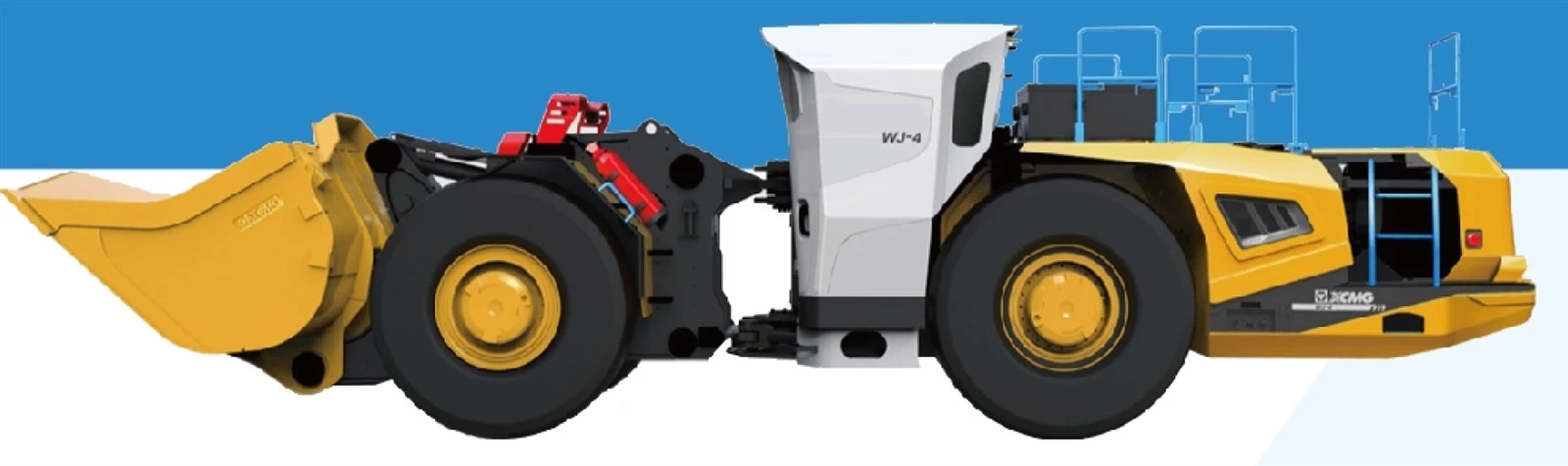

4.5m³ Diesel Underground Mining Loader
Bucket capacity: 4.5m³
Designed for loading, hauling and dumping operation of underground rock, and used in underground tunnels above 3.5m x 3.5m.
PRODUCTS OVERVIEW
Products Name: 4.5m³ DIESEL UNDERGROUND MINING LOADER
Model No.: WJ-4
Drive Type: Diesel Drive
Certification: ISO
Rated Load: 10 t
Walking Mode: Wheeled
Type: Medium-sized Loader
4.5m³ DIESEL UNDERGROUND MINING LOADER WJ-4 is diesel drive underground loader, its tramming capacity is 10t. All designs of this product originate from Sandvik.
It can adapt to the harsh underground working environment and is suitable for tunnels with a width above 3.5m.
10 Ton Underground Loader has strong power and flexible operation. The front axle of this Scooptram is with standard differential and rear axle with No-SPIN differential, both with POSI-STOP brake and reinforced colling circuit to guaranteed brake performance of this kind of Underground 4×4 Hydraulic Loader.
Products Description
|
Standard bucket(can be customized) |
4.5m³ |
|
Engine |
Volvo TAD882VE |
|
Maximum output torque |
1581 N.m |
|
Rated speed |
2200 r/min |
|
Rated Load |
10000kg |
|
Maximum breakout force |
122 kN |
|
Maximum scooping force |
225 kN |
|
Axle(front/rear) |
DANA20D |
|
Torque converter |
DANA C5000 |
|
Transmission |
DANA 3000 |
|
Tramming capacity |
10,000 kg |
|

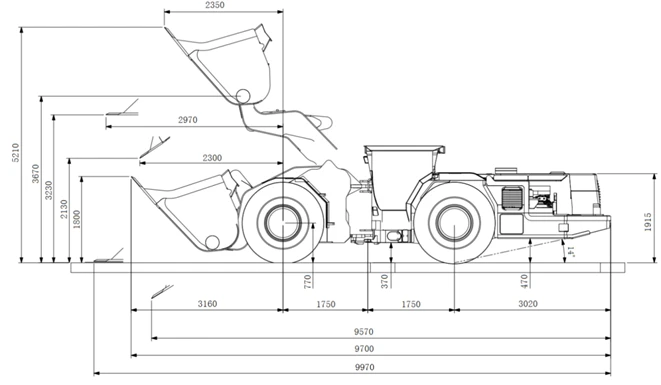

Length (lowest bucket status) |
9,680 mm |
|
Width (outside the wheel) |
2,550 mm |
|
Height(including the cab) |
2,380mm |
|
Min. turning radius (inner) |
3,010 mm |
|
Min. turning radius (outer) |
6,550 mm |
|
Max. dumping height(-40° dumping angle) |
2,130mm |
|
Weight |
30,100 kg |
PRODUCTS HIGH LIGHTS

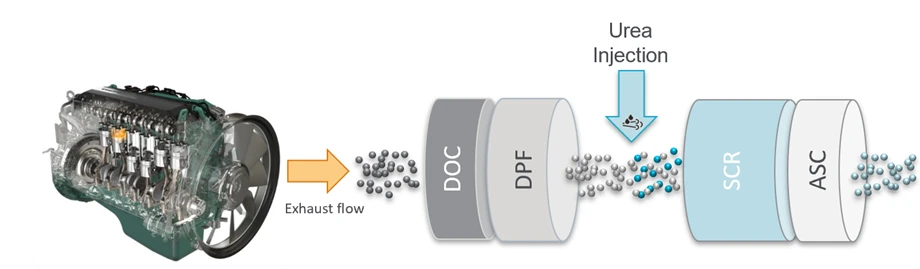

Efficiency Emissions
50% reduction in particulate emissions
100% increase in exhaust and coal smoke ratio
Diesel Engine
Volvo TADBB2VE, 210kw,2200rpm, CN IV

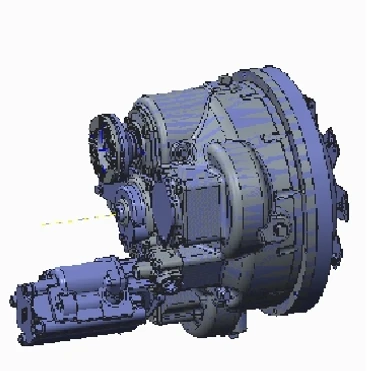

DANA Torque converter C5000

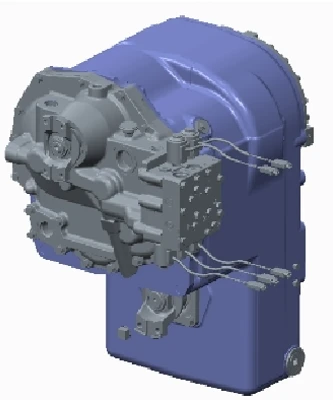

DANA Transmission R36000

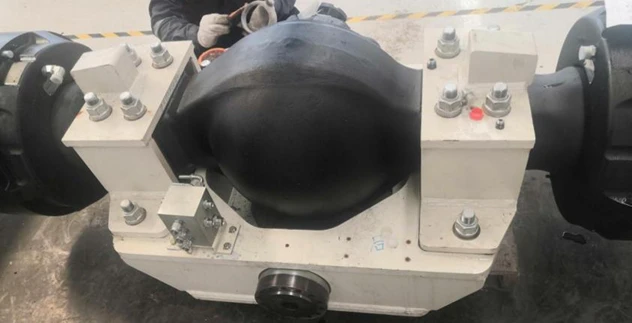

DANA AXLE 20D
Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park

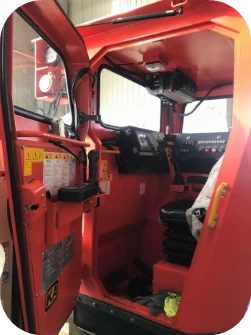

Safe and comfortable cabin
Design for convenient maintenance
FOPS & ROPS CertificateProducts Descriptio

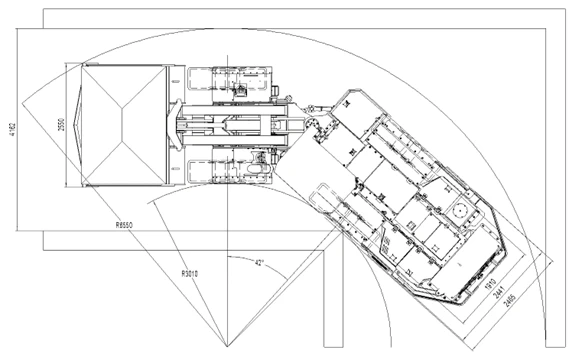

PRODUCTS TOP VIEW
FEATURES
High safety
Safety canopy designed according to FOPS & ROPS safety standards;
POSI-STOP brake system ensures brake saety.
High reliability
PERMCO hydraulic pumps,
EATON hydraulic hoses
REXROTH valves.
DANA powertrain components.
Easy maintenance
Daily maintenance can be done on the ground level;
Central lubrication and pressure testing system.
APPLICATION FIELDS
Mining and Underground Operations
Underground loaders are widely used in mines and underground operations for excavating, transporting, and hauling ore, coal, and other valuable minerals.
Tunneling and Underground Construction
Underground loaders are employed in tunneling projects and underground construction activities
Safety in Not-Coal Mines
In hazardous environments like Not-coal mines, underground loaders are utilized for coal excavation while ensuring workplace safety
