Surface Hydraulic Down-The-Hole Drill Rig

Product Overview

Model No.: ZJ170

Product Name: Surface Hydraulic Down-The-Hole Drill Rig

Types Of: Core Drilling Rig

Engine Type: Diesel

Place Of Origin: China

Warranty Period: 1 Year

Core Component Warranty Period: 1 Year

Core Components: Motor, Pressure Vessel, Pump, Plc, Gear, Bearing, Engine, Gearbox

Core Selling Point: Easy To Operate

Certification: Iso 9001:2008

Supply Ability & Additional Information

Packaging: Standard

Transportation: Ocean, Land

Place of Origin: China Port: FOB QINGDAO

Payment Type: L/C,T/T

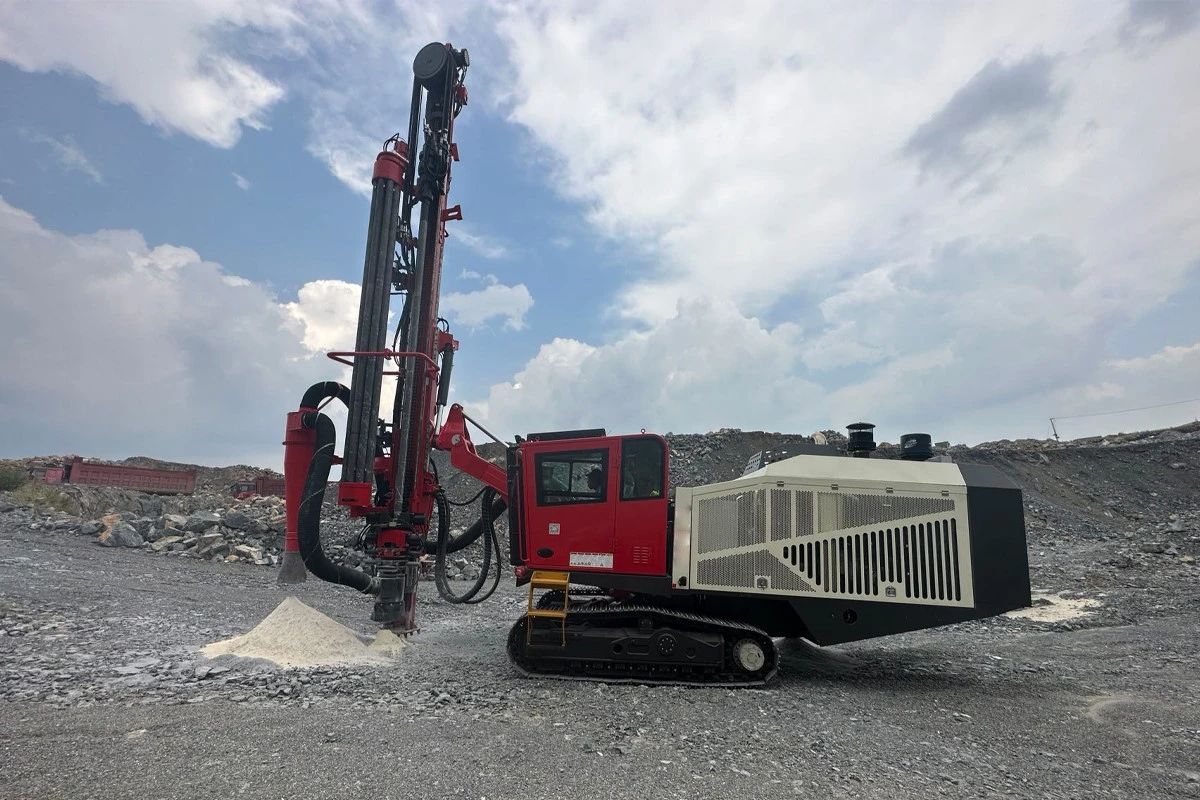

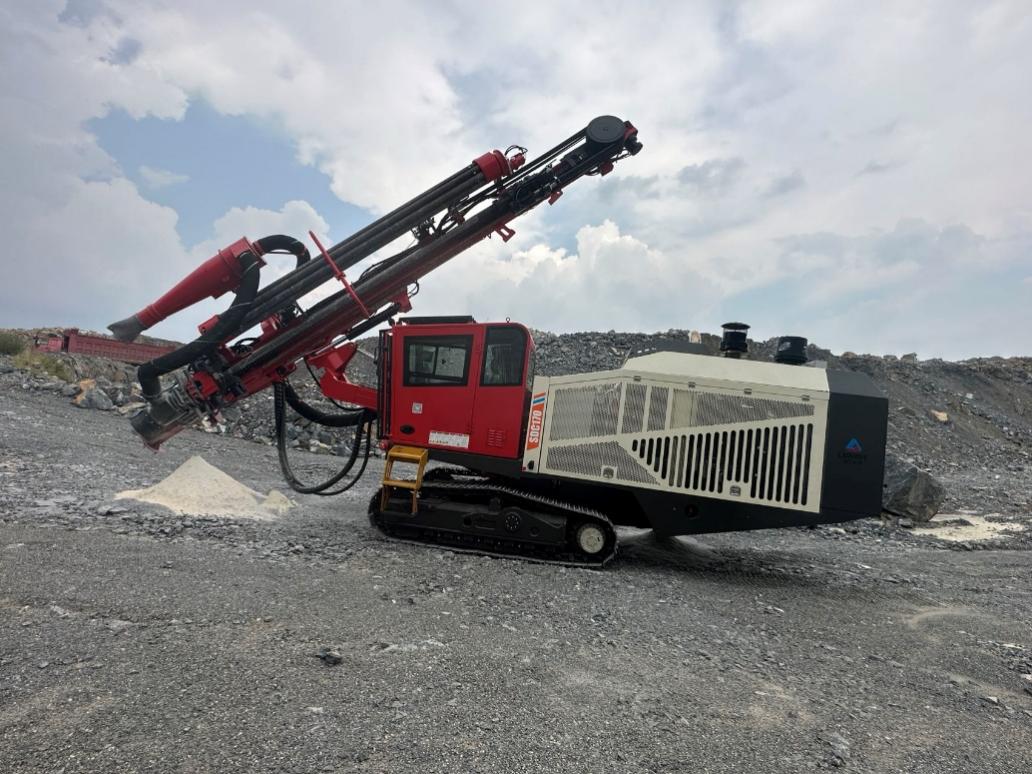

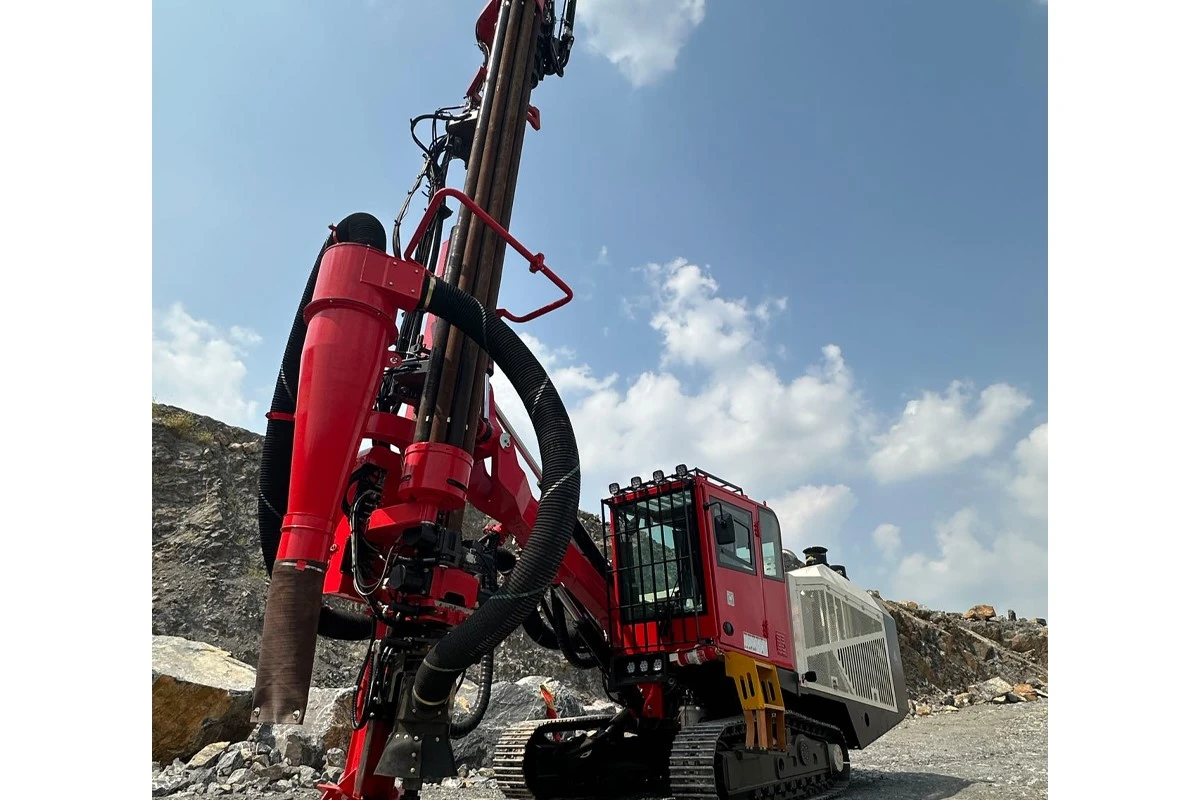

Surface Hydraulic Down-The-Hole Drill Rig is equipped with an operator's cabin, fixed boom, dry dust collector and drill pipe changer. The design and the lay-out are according to latest state-of-art. The SDC160 drills 90 - 165mm diameter holes with 76mm, 89mm, 102mm or 114mm drill pipe equipped with 6+1 drill pipes.

An integrated DTH drill rig means that air compressor is installed in the Mining Drill Rig and is driven by the same diesel engine.

The track oscillation system for more stable center of gravity of the Surface Hydraulic Down-The-Hole Drill Rig . The powerful performance for less numbers of equipment's and personnel required for the mine. The protection design of the cab and drill pipe carousel for personnel protection from possible danger.

Surface Hydraulic Down-The-Hole Drill Rig can meet the needs of large hole diameter in surface mines and quarries. It is safe, environmentally friendly, stable in performance, and has high production efficiency.

The strong power of Sandvik HTRH6 rotary head ensures that the machine can cope with the challenges of various working conditions; the CMS air compressor management system and drilling control system are used to greatly reduce fuel consumption

High overall efficiency

--Sandvik rock drill with the advantages of low voltage, mass flow and high frequency ensures efficient drilling.

--Telescopic boom provides larger drilling coverage.

Low operating cost

--Advanced drilling control system ensures drilling quality;

--Load sensing hydraulic system, variable air compressor management system with great wind volume and variable engine greatly reduce fuel consumption.

Safety and environmental protection

The design concept of "SAFETY FIRST" and "ENVIROMENT PROTECTION" ensures the construction of green mines.

Coal Mine

Metal Mine
