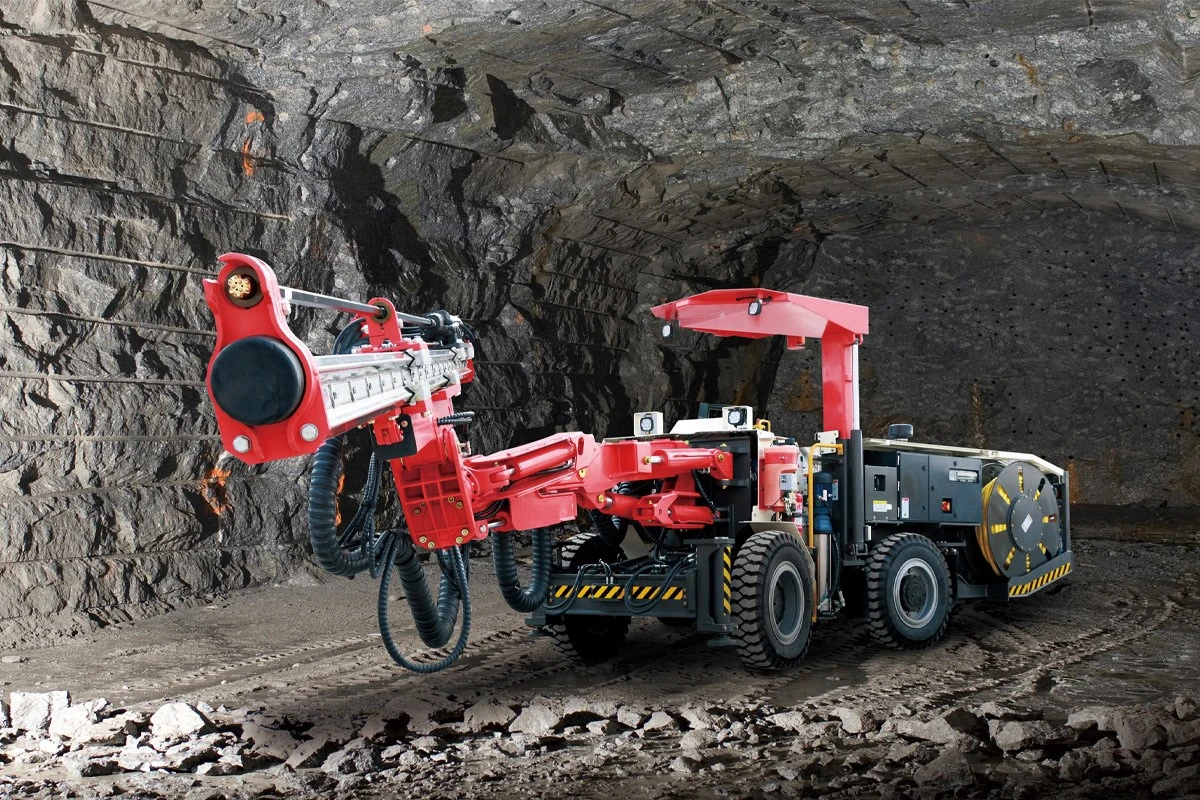

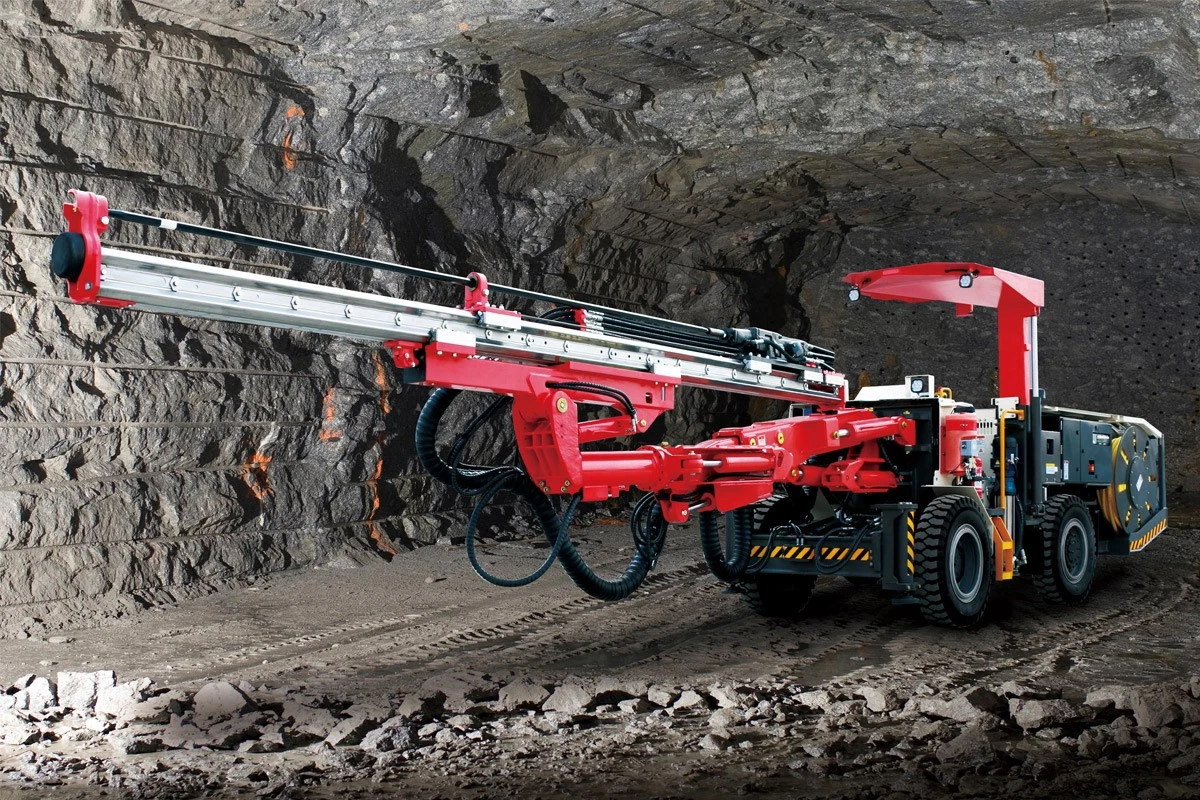

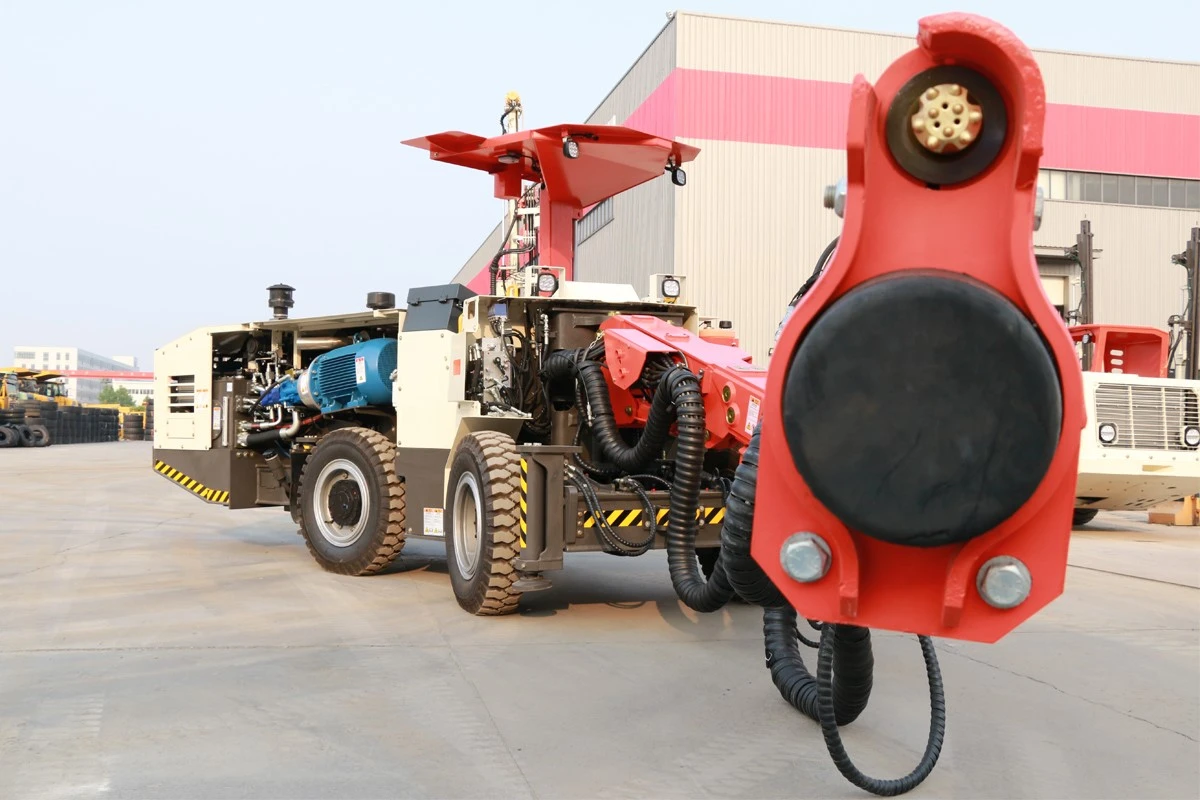

Underground Mining Drilling Rig
Product overview
Model No.: ZJ391H
Product Name: Underground Mining Drilling Rig
Usage: Ore Condition: New
Underground Mining Drilling Rig is a high-end equipment. The structure and system of the whole machine are derived from Sandvik's classic design. The main components are all from well-known international brands.
Underground Mining Drilling Rig can be used in the tunnel construction of underground mines, hydropower, railways, highways, etc.
PARAMETER
|
Coverage area |
34 ㎡ |
|
Rock drill |
LD50,18 kW |
|
Feed |
LG-CF4300/LG-CF3700 |
|
Boom |
LG-B26NV |
|
Hole diameter(reaming) |
32-64(76-127)mm |
|
Hole depth |
4,050/3,440 mm |
|
T-section width in turning |
2,750 mm |
|
Transport length |
10,600/11,360 mm |
|
Transport width |
1.660 mm |
|
Transport height |
2,350/2,885 mm |
|
Weight |
11,800 kg |
FEATURES
Efficient and stable drilling with high product reliability
-World famous Sandvik rock drill and SLU system.
-Stable and verified CBI direct control system;
-Key component from global brand of Rexroth, Parker, Cavotec, etc;
-Rebost and flexible boom with very big drill coverage of 34 ㎡.
Easy to operate.
-Automatic feed parallelism function.
-Anti-jamming, rock drill automatic stop and return;
-Operation station ergonomic layout;
-Wide visibility from the canopy.
Easy to maintenance
-All daily maintenance could be done on ground level;
-Central lubrication and pressure testing system.
High safety
-FOPS Canopy
-Safety warning and interlock
APPLICABLE INDUSTRIES
Underground Non-coal Mine
Tunnel construction
WORKING CASES
Tunnel construction
