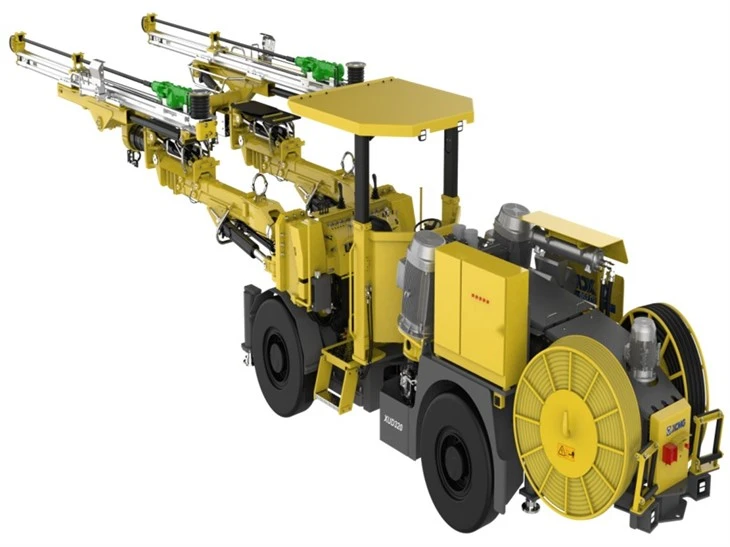

Hard Rock Underground Hydraulic Drilling Rig
Product overview
Model No.: ZJ39
Product Name: Hard Rock Underground Hydraulic Drilling Rig
Usage: Ore Condition: New
Hard Rock Underground Hydraulic Drilling Rig is a high-end equipment. The structure and system of the whole machine are derived from Sandvik's classic design. The main components are all from well-known international brands.
Underground Hydraulic Drilling Rig can be used in the tunnel construction of underground mines, hydropower, railways, highways, etc.
PARAMETER
|
Coverage area |
34 ㎡ |
|
Rock drill |
HL710S,20kW |
|
Drill pipe length |
1525mm |
|
Hole diameter(reaming) |
51-89 mm |
|
Rotation center height(mm) |
1605mm |
|
T-section width in turning |
3,200 mm |
|
Min. width*height of tunnel(mm) |
3,500*3,500mm |
|
Max. width*height of tunnel(mm) |
4,900*5,990mm |
|
Transport length |
7,,390 mm |
|
Transport width |
1,850 mm |
|
Transport height |
3.250 mm |
|
Weight |
16,500 kg |
ROCK DRILL
|
Model |
HL710S |
|
Power |
20KW |
|
Pressure(bar) |
up to 190bar |
|
Frequency(Hz) |
52Hz |
|
Rotation speed(rpm) |
0-180 |
|
Rotation torque(mm) |
10944NM(OMT200) |
|
Weight |
245kg |
|
Length |
1,340mm |
FEATURES
Efficient and stable drilling with high product reliability
-World famous Sandvik rock drill and SLU system.
-Stable and verified CBI direct control system;
-Key component from global brand of Rexroth, Parker, Cavotec, etc;
-Rebost and flexible boom with very big drill coverage of 34 ㎡.
Easy to operate.
-Automatic feed parallelism function.
-Anti-jamming, rock drill automatic stop and return;
-Operation station ergonomic layout;
-Wide visibility from the canopy.
Easy to maintenance
-All daily maintenance could be done on ground level;
-Central lubrication and pressure testing system.
High safety
-FOPS Canopy
-Safety warning and interlock
APPLICABLE INDUSTRIES
Underground Non-coal Mine
Tunnel construction
WORKING CASES
Tunnel construction
