2m³ Underground Mining Scraper
2 m³ Underground Mining Scraper

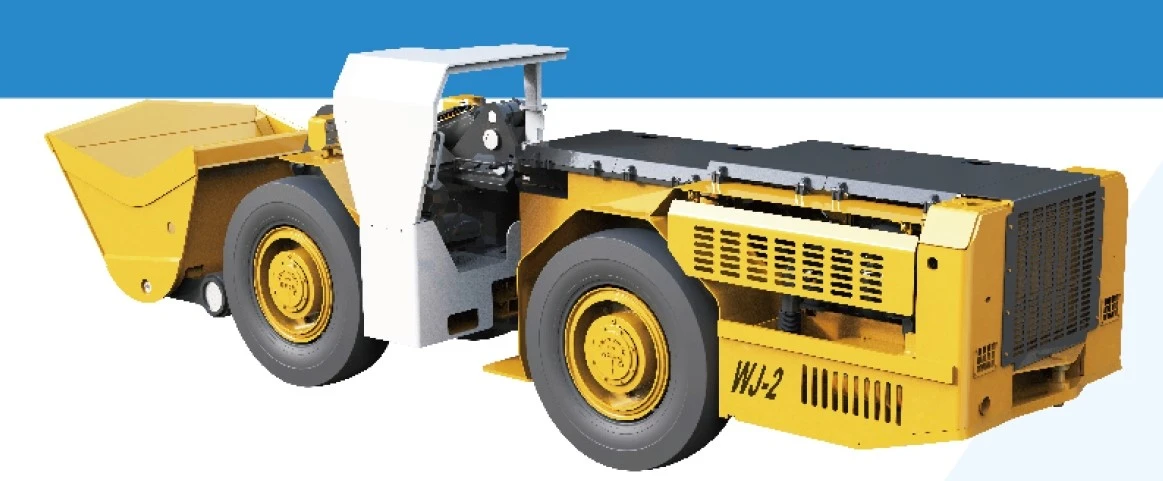

WJ-2 underground mining scraper is suitable for excavation, transportation, and unloading of materials in non explosive mining tunnels (3mx3m) and other small tunnels.
It meets the requirements of mining safety certification, with a rated bucket capacity of 2m³, rated load 5 tons, and traction force up to 140kN.
Technology for WJ-2 underground mining scraper could reach international advanced level, meeting requirements from overseas market. At the same time, some configurations could be replaced or modified to take into account domestic and overseas markets without special standard requirements.
Products Key Lights
Working device
Six bar linkage mechanism, can achieve greater shovel force,Larger unloading distance
Faster working speed,better lifting and translational performance.
Bucket
Made of HardOX wear-resistant plate, wear-resistant and durable, can adapt to various mining environments
Transmissions system
Hydrostatic mechanical transmission, easy to operate,can achieve stepless speed change;
Hydraulic system
Hydraulic system operation and steering adopt hydraulic pilot control
Frame
Adopting segmented connection, easy disassembly, meeting the needs of underground operations
Exhaust purification system
Using DOC oxidation catalyst to purify harmful substances in exhaust gas, and conducting secondary purification through water washing box to adapt for environmental construction

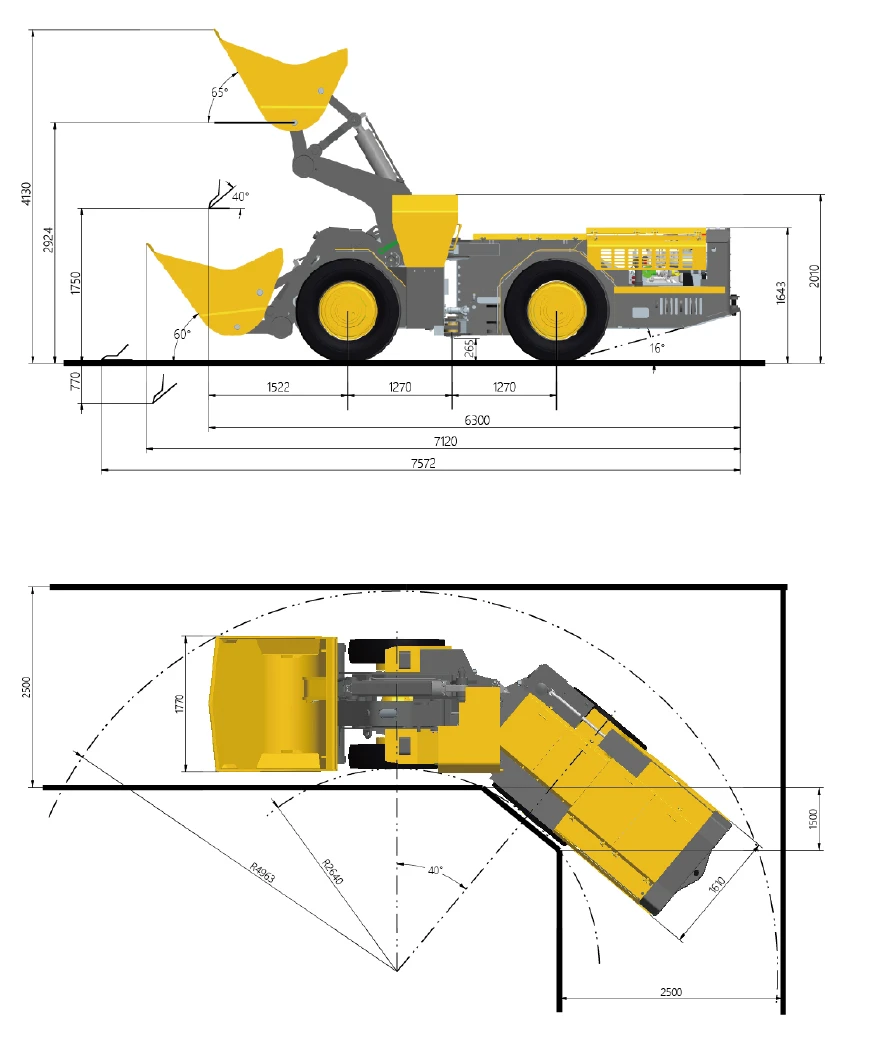

Products Dimensions
Products Technical Parameter
| BASIC TECHNICAL PARAMETER | ||
| 1 | Empty weight(KG) | 13800 |
| 2 |
Rated load capacity (KG) |
5000 |
| 3 | Bucket volume(m³) | 2 |
| 4 | L*W*H(mm) | 7120*1790*2010 |
| 5 | Rear axle swing angle(°) | ±8 |
| 6 | Turning radius(mm) | 2640/4936 |
| 7 | Maximum Dumping Height(mm) | 1750 |
| 8 | Unloading distance(mm) | 885 |
| 9 | Unloading angle(°) | 40 |
| 10 | Maximum speed(km/h) | 20 |
| 11 | Departure angle(°) | 16 |
| 12 | Ground clearance(mm) | 265 |
| 13 | Maximum shovel force(KN) | 104 |
| 14 | Maximum traction force(KN) | 140 |
| MAIN CONFIGURATION | ||
| 1 | Diesel Engine | CUMMINS |
| 115KW | ||
| CN III | ||
| 2 | Transmission sytem | DANA R3200D Transmission |
| DANA C270 Torgue Converter | ||
| Drive Axle:KTQ2020/KTH2020 | ||
| 3 | Hydraulic System | working pressure:14 Mpa |
| Hydraulic oil tank capacity(L):260 | ||
| Main pump: Danfoss | ||
| 4 | Electrical System | Main component supply: Schneider |
| Voltage(V): 24 | ||
| 5 | Cab | Free lifting and lowering with good visibility |
