Rock Drill for Sandvik
ROCK DRILL FOR SANDVIK
Product Overview

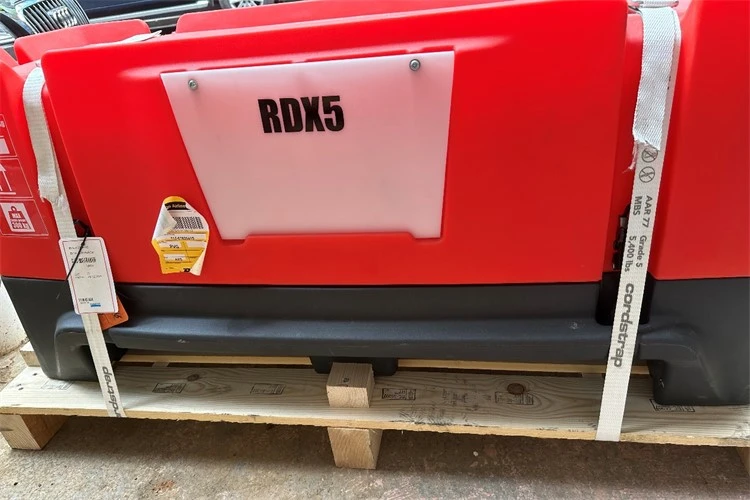

Model No.: RDX5
Brand: SANDVIK

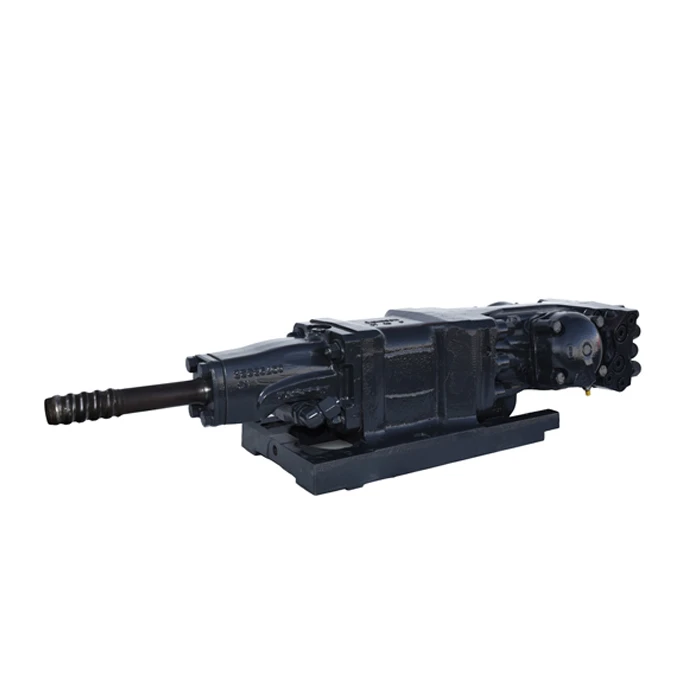

Product Name: ROCK DRILL for SANDVIK
Supply Ability & Additional Information

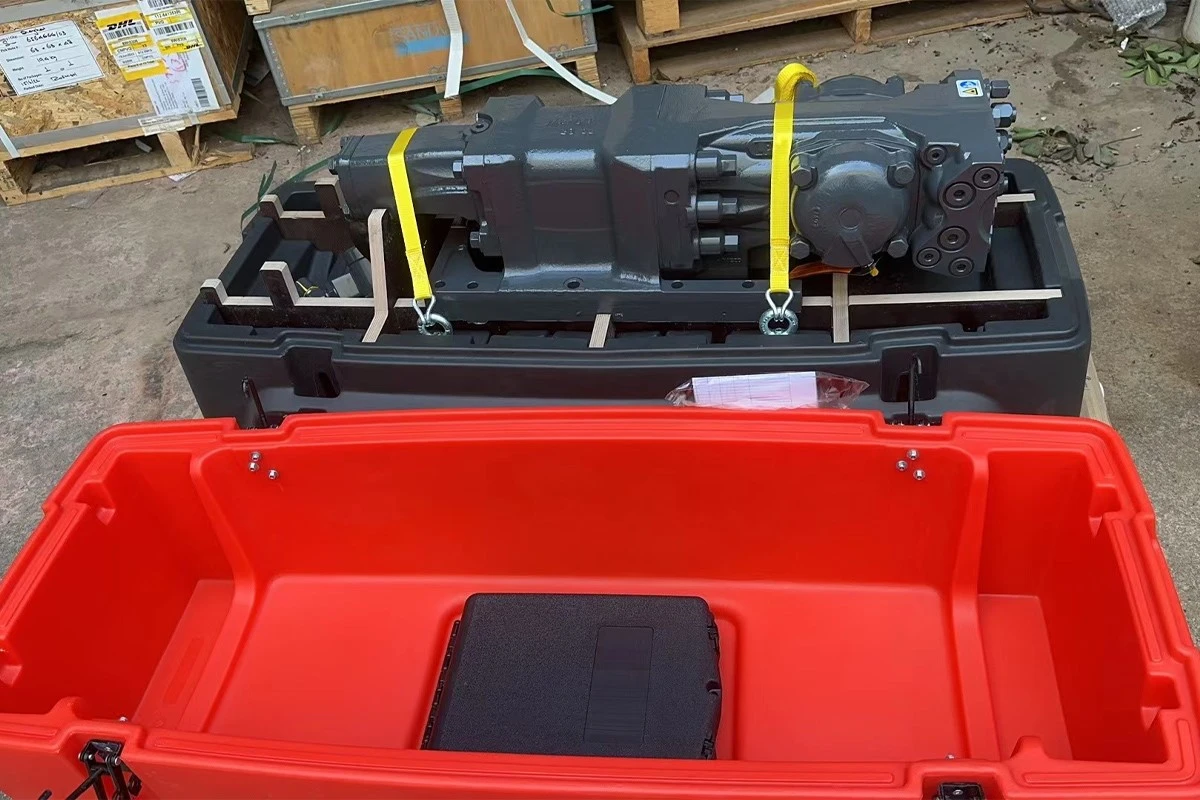

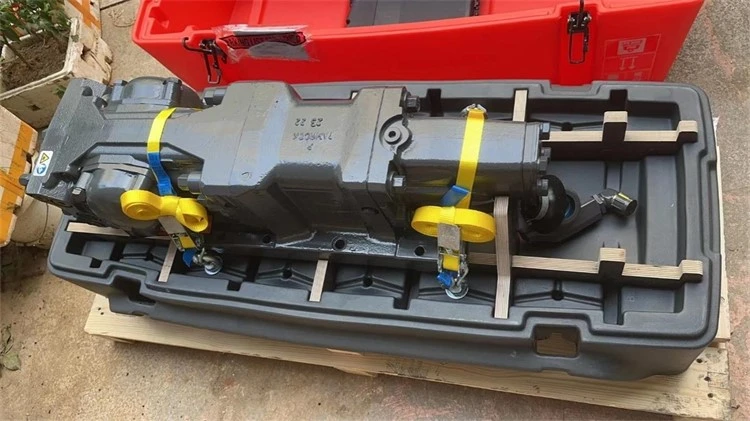

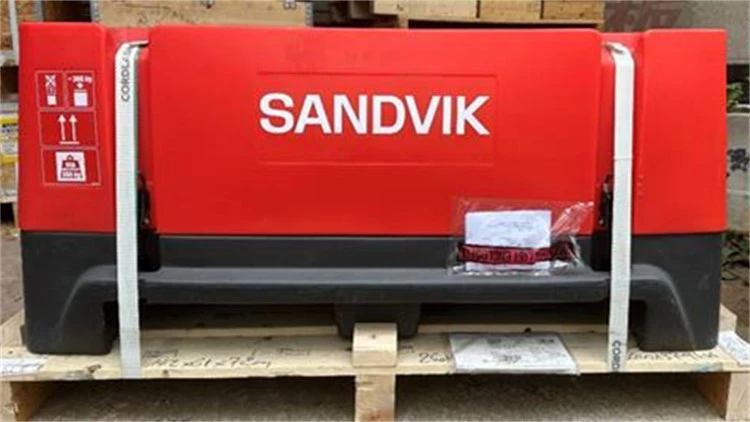

Packaging: Standard

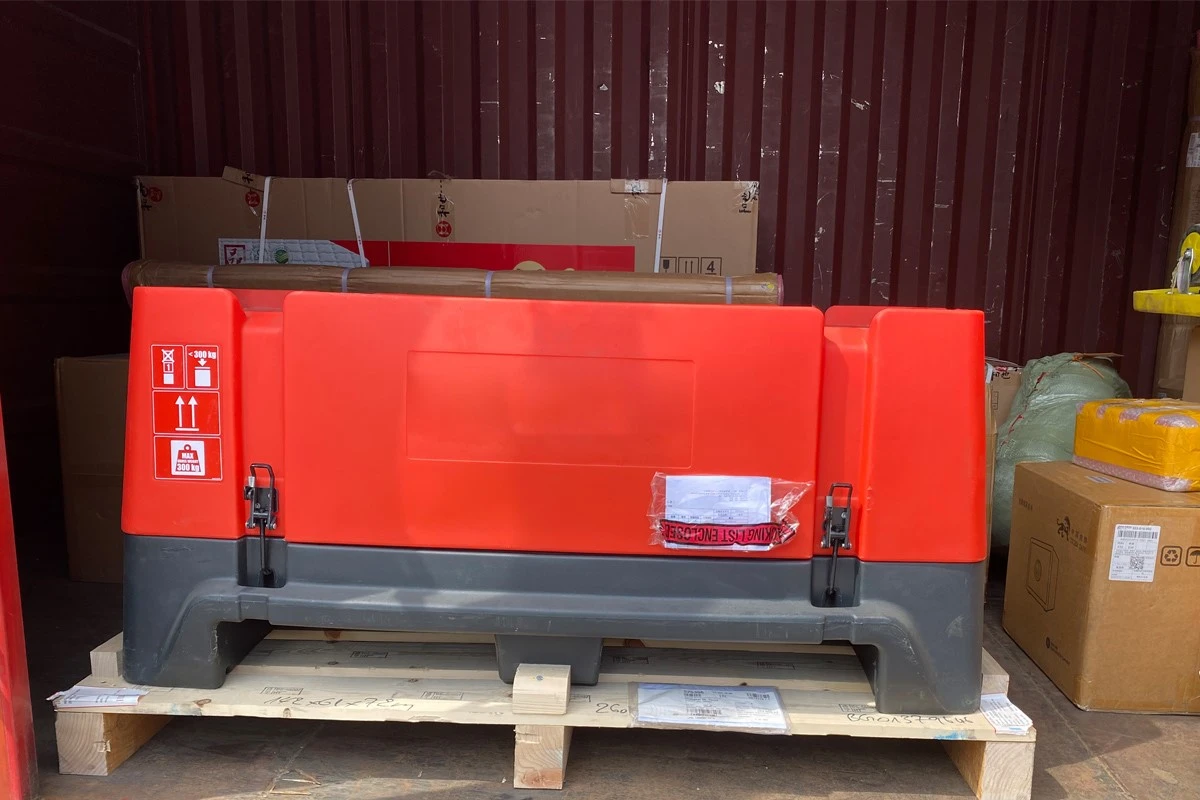

Transportation: Ocean, Land
Place of Origin: China Port: FOB QINGDAO
Payment Type: L/C,T/T
ROCK DRILL for SANDVIK is known for its exceptional durability. The robustness is achieved by less pressurized seams and simple design with only two moving parts. The design of the rock drill enhances hydraulic efficiency while lessening wear on the parts.
ROCK DRILL for SANDVIK has excellent serviceability through modular construction and visual wear indicators. It also has an integrated carriage for ease of service.
Shank lubrication drain is led to feed surfaces to reduce lubrication fume, creating a more comfortable working environment.
Product parameters

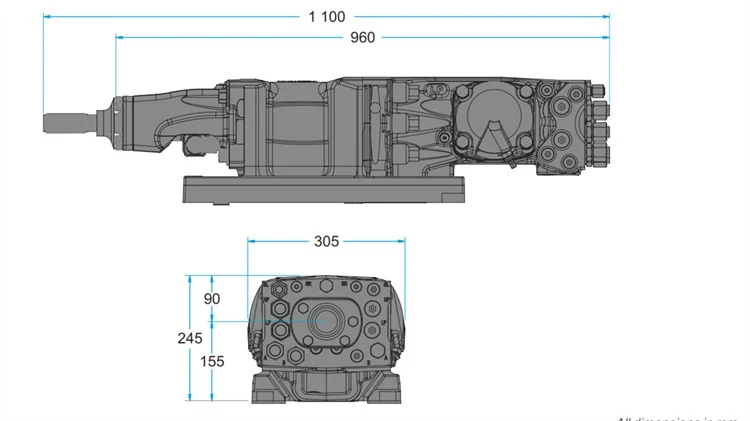

MAIN DIMENSIONS
|
Hole diameter drilling |
43 - 64 mm |
|
Hole diameter reaming |
76 - 127 mm |
|
Power class |
20 kW |
|
Percussion rate |
67 Hz |
|
Operating pressure |
Percussion |
|
Rotation (max.) |
120 - 220 bar 175 bar |
|
Rotation motor type |
OMS 80, OMS 125 or OMS 160 |
|
Drill steels |
R32, R39 or Hex 35 mm drifter rods, MF-rods highly recommended |
|
Shanks |
45 mm / T38 / R32 / T35 / R38 / T45 |
|
Weight |
210 kg |
ROTATION MECHANISM
|
Motor |
Orbit type |
|
Motor type 1 |
OMS 80 |
|
Torque (at 175 bar) |
400 Nm |
|
Rotation speed |
0 - 250 rpm |
|
Flow (at max speed) |
46 l/min |
ROTATION MECHANISM
|
Motor |
Orbit type |
|
Motor type 2 |
OMS 125 |
|
Torque (at 175 bar) |
625 Nm |
|
Rotation speed |
0 - 250 rpm |
|
Flow (at max speed) |
72 l/min |
FLUSHING PRESSURE
|
Max. pressure (air / water) |
20 bar |
|
ACCUMULATORS |
|
|
Accumulator gas |
Nitrogen N2 |
|
High pressure (HP) |
50 bar |
|
Low pressure (LP) |
4 bar |
|
Filling valve |
Vg8 DIN7756 |
SHANK LUBRICATION
|
Air flow |
250 - 350 l/min |
|
Pressure |
4 - 7 bar |
|
Oil consumption |
180 - 250 g/h |
|
OIL RECOMMENDATION |
|
|
Oil operating temperature |
+40°C up to +60°C |
|
Oil recommendation |
See Sandvik drill rigs lubricant recommendation for detailed information |
